TWIN412

Ceramic Package 384x288/12µm Thermal Camera Core

Main Features:

  • Optimal SWaP-C
    •  Mini size: 25.4mm×25.4mm×22.0mm (without lens)
    •  Light weight: as low as 20g (without lens)
    •  Power consumption as low as 0.8W

    Outstanding Performance
    • Powerful image process algorithm: NUC/3DNR/DNS/DRC/EE
    • Temperature measurement range: -20℃~150℃, 0~550℃ (customizable)
    • Temperature measurement accuracy: ±2℃ or ±2%

    Strong Universality
    • Good stability in various harsh environments
    • Image data output: USB2.0/DVP/LVDS
    • Support Windows/Linux SDK; achieve video stream analysis and conversion from gray to temperature
Send message to us

Description:

TWIN412/R thermal module is a new arrival infrared product developed by Global Sensor Technology. It uses 384×288/12μm ceramic package infrared detector. The thermal module supports 11 pseudo color in total (White Hot/Lava/Ironbow/Aqua/Hot Iron/Medical/Arctic/Rainbow1/Rainbow2/Red Hot/Black Hot). Different industries have different color palette choices.

Ceramic packaging is currently the most popular packaging technology on the market. The size, weight and power consumption of the detector can be significantly reduced.

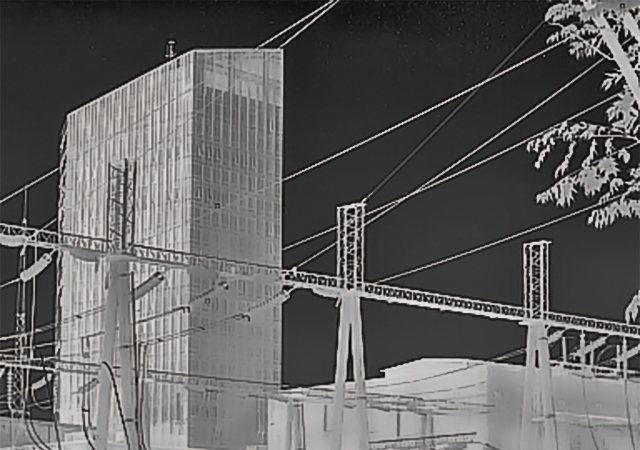

By integrating the ceramic packaging infrared detector, the TWIN412/R thermal module presents clear and sharp images.

This new TWIN412 thermal module will give more choices for customers from various industries such as Industrial Automation, Intelligent Security, Unmanned Platform, Robot, Intelligent Hardware, Advanced Driver Assistant System, Firefighting etc.

Application:


Video:

Specifications:

Model TWIN412/R
IR Detector Performance
Resolution 384×288
Pixel Size 12μm
Spectral Range 8~14μm
Typical NETD ＜30mK
Image Processing
Frame Rate 25Hz/30Hz/50Hz
Start-up Time 5s
Analog Video PAL/NTSC
Digital Video YUV/BT.656/LVDS/USB2.0
Image Display 11 in Total (White Hot/Lava/Ironbow/Aqua/Hot Iron/Medical/Arctic/Rainbow1/Rainbow2/Red Hot/Black Hot)
Image Algorithm NUC/3DNR/DNS/DRC/EE
Electrical Specifications
Standard External Interface 50pin_HRS
Communication Interface RS232/USB2.0
Supply Voltage 4~5.5V
Typical Power Consumption 0.8W
Temperature Measurement
Operating Temperature Range -10℃~50℃
Temperature Measurement Range -20℃~150℃, 0℃~550℃
Temperature Measurement Accuracy Greater of ±2℃ or ±2%
SDK Windows/Linux; Achieve Video Stream Analysis and Conversion from Gray to Temperature
Physical Characteristics
Size (mm) 25.4×25.4×22.0mm (Without Lens)
Weight 20g (Without Lens)
Environmental Adaptability
Operating Temperature -40℃～+70℃
Storage Temperature -45℃～+85℃
Humidity 5%~95%, non-condensing
Vibration 5.35grms, 3 Axis
Shock Half Sine Wave, 40g/11ms, 3 Axis, 6 Direction
Optics
Optional Lens Fixed Athermal: 13mm/19mm/25mm/35mm/50mm/70mm (TWIN412)
Fixed Athermal: 13mm/19mm/25mm (TWIN412/R)
