| Model | MINI212 | ||||
| Resolution | 256×192 | ||||
| Pixel Size | 12μm | ||||
| Spectral Response | 8~14μm | ||||
| NETD | ≤50mK | ||||
| Output Data | 14bit Raw | ||||
| Frame Rate |
Thermography: 25Hz Night Vision: Max 50Hz |
||||
| Focusing Method | Manual Focus | Focus Free | |||
| Lens (HFOV/FL) | 13°/13mm | 17.5°/10mm | 25°/ 7mm | 56°/ 3.2mm | 90°/ 2.1mm |
| Weight (g) | 20 | 8.5 | 6.9 | 3.8 | 8.8 |
| PCBA size (mm) | 17×17 | ||||
| Digital Video Interface | USB2.0 / DVP / BT.656 / LVDS | ||||
| Working Voltage | 3.3V±0.1V | ||||
| Typical Power Consumption | 300mW | ||||
| Temperature Measurement Range | -20℃~+550℃ (-20℃~+150℃ | +100℃~550℃) | ||||
| Temperature Measurement Accuracy | Greater of ±2℃ / ±2% | ||||
| Working Temperature | -20℃~+60℃ | ||||
| Humidity | 5%~85% (Non-condensing) | ||||
| Storage Temperature | -40℃~+85℃ | ||||
| Certification | RoHS 2.0 | ||||
For more information, please click the button below to download a PDF of the product.
Downloads

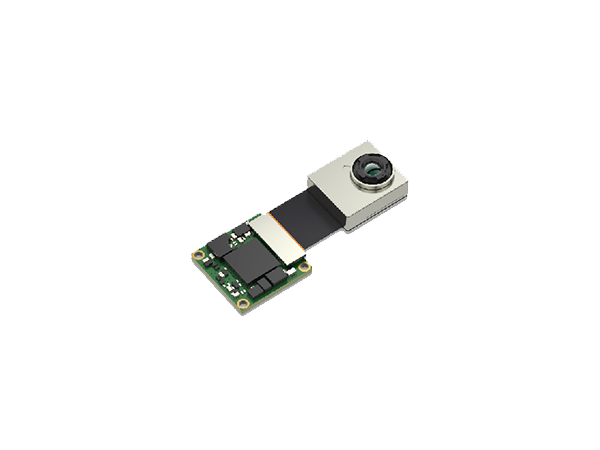

MINI212 Uncooled Miniature 256×192 VOx Thermal Module
