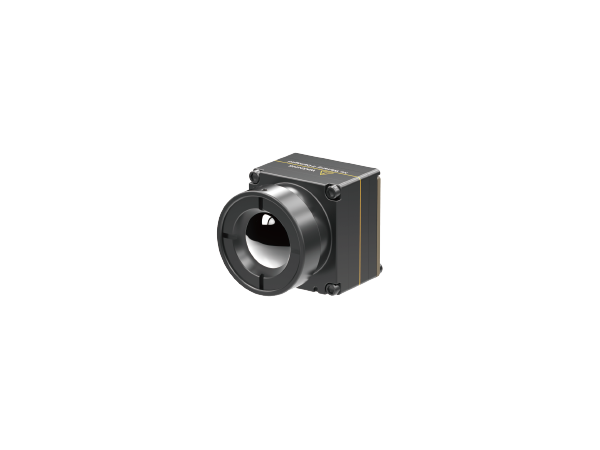

iTL612

iTL Series 640X512 VOx Uncooled Thermal Module

Main Features:

- Mini Size: 21x22.3x15.6 (With 9.1mm Lens)
- Light Weight
- NETD≤50mk
- High Quality Image
- Low Power Consumption
- Rapid Development & Integration

Description:

iTL612R is a radiometric thermal camera for drones and can be widely used in the area of industrial inspections, technical diagnostics, predictive maintenance etc. It is a uncooled LWIR infrared camera with spectral range from 8 to 14μm.

The iTL612R infrared camera core integrates 640x512 / 12μm wafer level package (WLP) infrared thermal detector. It features in sharp and crisp image presentation, compact size and low cost. This thermal camera module also has an optional thermographic function with measurement range from -20℃~550 ℃ for industrial temperature measurement.

Application:

Specifications:

Model iTL612/R
IR Detector Performance
Sensitive Material VOx
Resolution 640x512
Pixel Pitch 12μm
Spectral Range 8~14μm
Typical NETD ≤40mk
Image Processing
Frame Rate 25Hz/30Hz
Start-up Time 5s
Digital Video RAW/YUV/BT656
Image Algorithm Non-uniformity Correction (NUC)
3D Noise Reduction (3DNR)
2D Noise Reduction (DNS)
Dynamic Range Compression (DRC)
Edge Enhancement (EE)
Digital Zoom 1X~8X Continuous Zoom, 1/8 Step Size (YUV Output)
Image Display  Black Hot/White Hot/Pseudo Color
PC Software
ICC Software Module Control and Video Display
Electrical Specification
Standard External Interface 30Pin_HRS: DF40C-30DP-0.4V(51), (HRS, Male)
USB Extension Board Type-C
Communication Interface TTL-232/USB2.0
Digital Video Interface CMOS8/USB2.0
Supply Voltage 3.3V±0.1V VDC
Typical Power Consumption 0.7W
Temperature Measurement
Operating Temperature Range -10°C~+50°C
Temperature Measurement Range -20°C~+150°C, 0°C~550°C; Support Customization and Expansion
Temperature Measurement Accuracy Greater of ±3°C or ±3% (@23℃±3℃)
Regional Temperature Measurement Support Maximum, Minimum and Average Value of the Output Regional Temperature
SDK Support Windows/Linux/ARM; Achieve Video Stream Analysis and Conversion from Gray to Temperature
Physical Characteristics
Size (mm) 21x21x13.5mm
Weight 19.5g±1g (With 9.1mm Lens)
Environmental Adaptability
Operating Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration 5.35grms, 3-axis
Shock Half-sine Wave, 40g/11ms, 3-axis 6-direction
Certificates ROHS2.0/REACH
Optics
Optional Lens Fixed Athermal: 9.1mm

For more information, please click the button below to download a PDF of the product.
